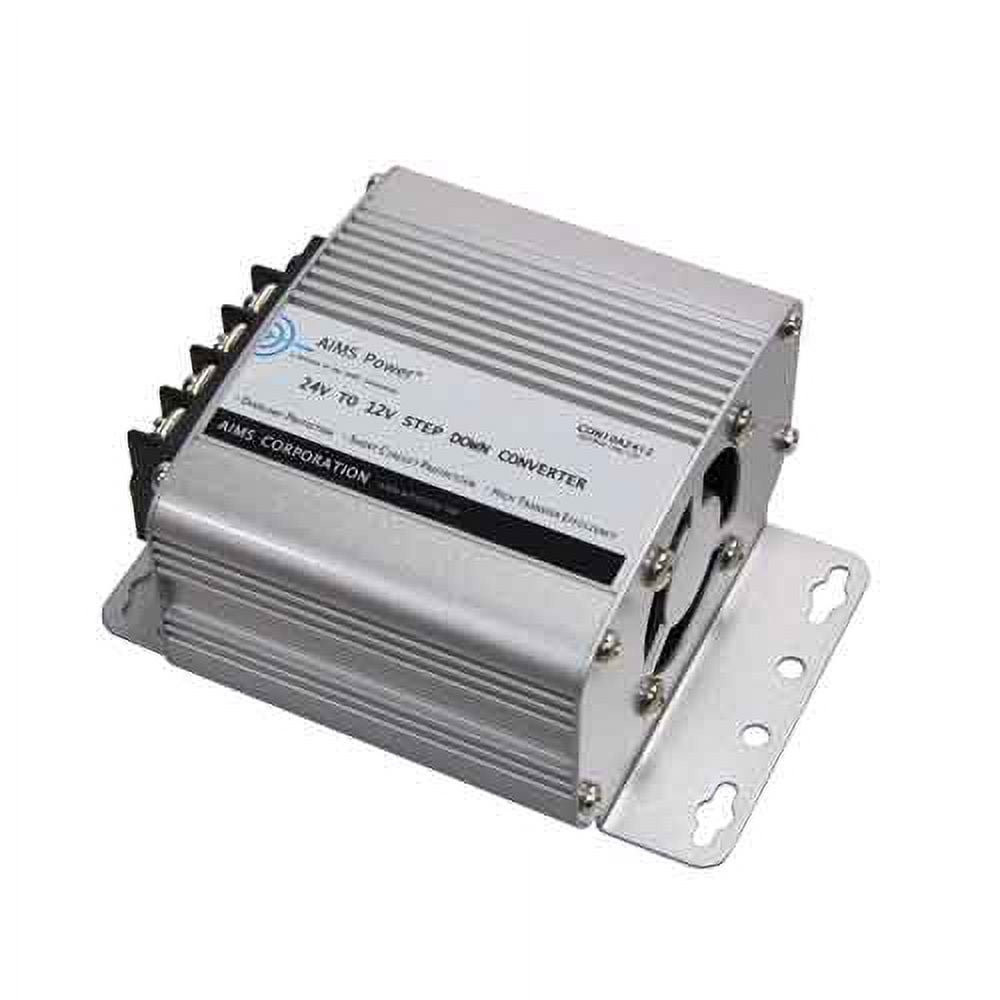

AIMS CON10A2412 10A 24V to 12V DC-DC Converter

Images are for reference only. See product specifications.

AIMS CON10A2412 10A 24V to 12V DC-DC Converter - Image 2

AIMS CON10A2412 10A 24V to 12V DC-DC Converter

50,00 ر.ق

This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 10 Amps. This a non-isolated 10 amp DC-DC converter and is made for use in negative ground systems. These units have CE EN61000-6-3:2007+A1:2011 and CE EN61000-6-1:2007

Features

  • 10 Amp 24 volt to 12 volt dc to dc converter
  • Green LED on front panel to confirm power on
  • Terminal block for DC input/output
  • Over Temperature protection
  • Over Load protection
  • DC Input Low Battery Shutdown
  • DC Input High Battery Shutdown
  • DC Output Short Protection
  • DC Output Over Current Protection
  • DC Output Over Voltage Protection
  • Aluminum case for optimal cooling
  • Instruction manual
  • 1 Year Parts and Labor

Specifications

  • DC Input Voltage: 20-37 VDC
  • DC Output Voltage: 12.5-13.5 VDC
  • Output Current: 10A
  • Output Current Maximum: 12A
  • Conversion Effiency: >91%
  • DC Input Low Battery Shutdown: 18 +/- 1 V
  • DC Input High Battery Shutdown: >38Vdc
  • DC Input Over Current Protection: 7.5A Fuse
  • DC Input Polarity Protection: Fuse Protected
  • Over Temperature Protection: 150 +/- 5 degrees F
  • DC Output Over Current Protection: 12A
  • DC Output Over Voltage Protection: TVS Diode
  • Dimension: 5.91 x 3.39 x 2.2 in.
  • Weight: 1 lbs

– SKU: CON10A2412

Contact for price & Availability
Add to wishlist
Compare
SKU: 50754224 Category:

Additional information

UPC

840271003054

Brand

AIMS POWER
